SPECIFICATIONS
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | Flexible |
| Lens | |
| Lens Type | Fixed |
| Focus | 2.8mm/4mm |
| Lens Mount | M12 |
| Aperture | F2.0, Fixed |
| FOV | Horizontal field of view: 99.7° (2.8mm)/83.3°(4mm) |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 40 m |
| Wavelength | 850nm |
| White LEDs/Warmlights | N/A |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32 Kbps~6 Mbps |
| Audio Compression | N/A |
| Audio Bit Rate | N/A |
| Image | |
| Max. Resolution | 1920 1080 |
| Main Stream | PAL: 25fps (1920 1080, 1280 720, 704 576, 640 480) |
| NTSC: 30fps (1920 1080,1280 720, 704 480, 640 480) | |
| Sub Stream | PAL: 25fps (704 576, 704 288, 640 360, 352 288) |
| NTSC: 30fps (704 480, 704 240, 640 360, 352 240) | |
| Third Stream | N/A |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | N/A |
| OSD | 16 16, 32 32, 48 48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Picture Overlay | N/A |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | Tripwire, Perimeter |
| Early Warning(EW) | N/A |
| Network | |
| ANR | Yes(Only Support Tiandy ANR NVR) |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
| Remote Connection | 7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Reset Button | Yes |
| On-board storage | N/A |
| General | |
| Firmware Version | – |
| Web Client Language | 15 languagesEnglish, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -40 ～65 , 0～95% RH |
| Power Supply | DC 12V±25%, PoE (802.3af) |
| Power Consumption | MAX: 6W(12V) MAX: 7W(POE) |
| Protection | IP68, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | N/A |
| Dimensions | 100*118*170mm |
| Weight | 2.5-3KG |
*Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
Application Environments:

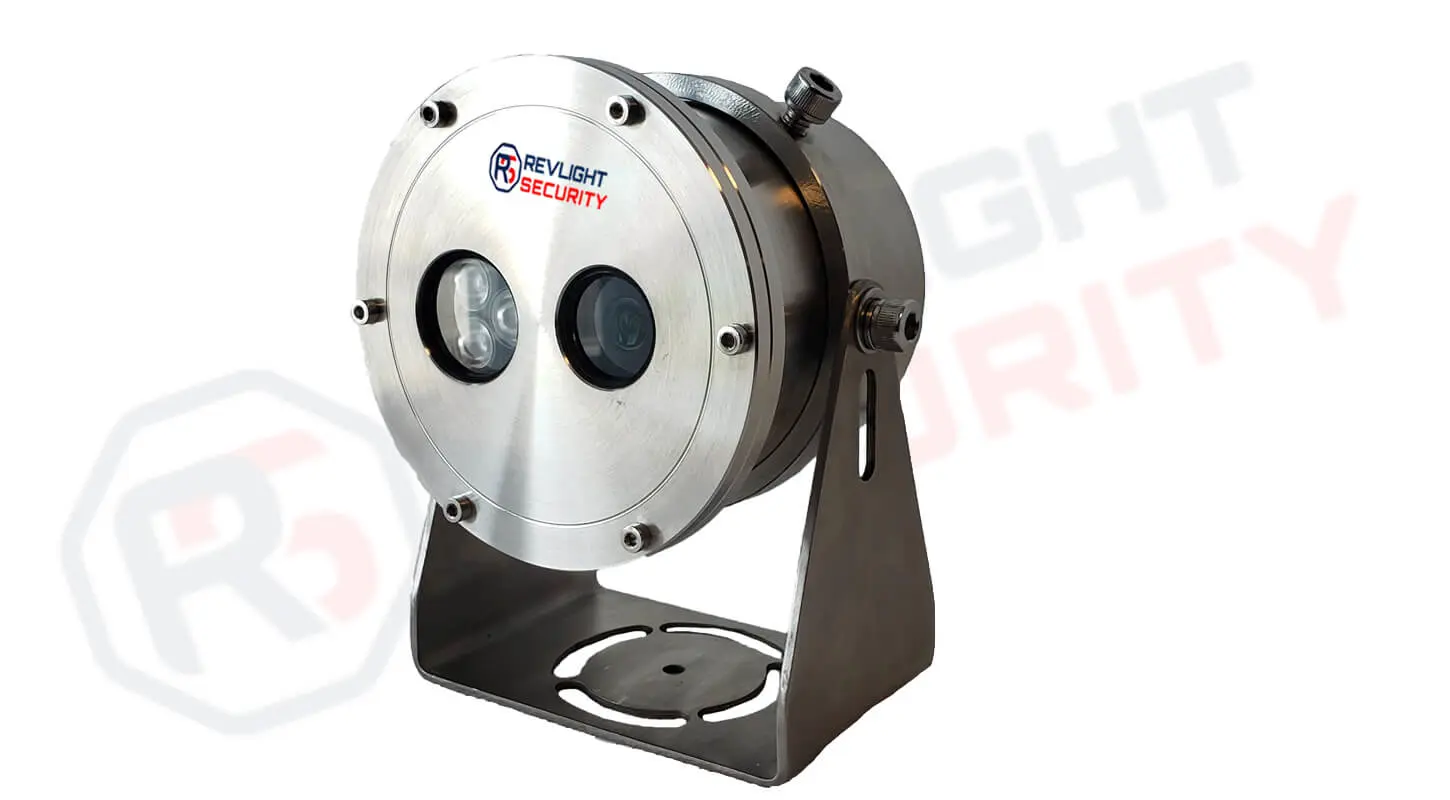

This is a miniaturized, infrared integrated, and intelligent Ex-Proof Anti-corrosion monitoring
equipment. It can be widely used in petroleum, chemical industry, oil depots, ships,Vessels ,Marine,
drilling platforms, gas stations, gas stations, ports, mines, aerospace, Military industry, steel,
pharmaceutical, fireworks production, food processing and other places.
It has a built-in infrared lighting chip, which automatically turns on the infrared light at night or
when the visible light is insufficient. It adopts a window design with the camera to completely
eliminate the infrared light halo and can monitor dangerous places all-weather.The window is
special tempered flat glass, the light transmittance is higher than 95%, while being sturdy and
durable, it ensures the clear image.Optional low-temperature automatic heating function, automatic
heating components can ensure that the equipment can work stably for a long time under the
temperature condition of -30℃ to +60℃ to prevent condensation.The protection grade reaches
IP68, the stainless steel Sunshield is adopted, the structure is firm and fully sealed, which
represents the current high standard of environmental protection.Also widely used for marine safe
environment
