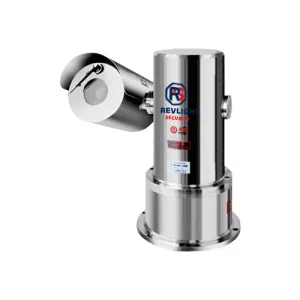

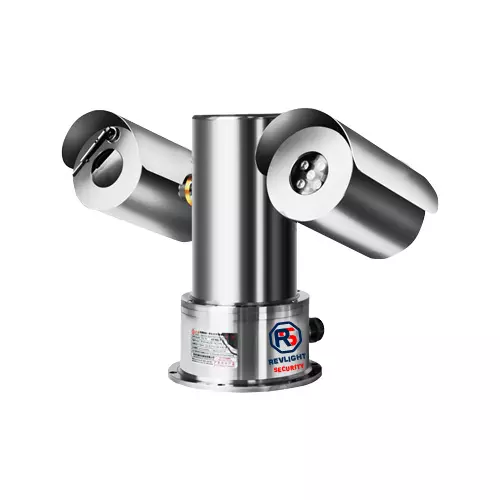

Explosion-proof Stinger (IR) Camera

Explosion-proof Stinger (IR) Camera

$16,900.00 $6,400.00

Markets



Certifications



Features

  • Highly integrated explosion-proof PTZ, explosion-proof decoder, smaller volume and lighter, more intelligent and advanced function.
  • SONY zoom camera, 30x optical zoom, 12x digital zoom
  • Apply for severe dangerous environment with variety flammable gas and dust, double side loading type design, camera, infrared lamp and other auxiliary lighting equipment can be collocated with.
  • Stainless steel material, integrated design, the window adopts double plate water-proof tempered glass, impact resistance, good shielding and heat dissipation.Explosion-proof, dust-proof, water-proof, rust-proof.
  • 360°horizontal rotation, -90°~+90°vertical, omni bearing monitor suspicious target.
  • PD/PP protocol self-adaptive, RS485 communication method.
  • RS-485 control functions, compatible with a variety of communication protocols and baud rate, and also able to react to various host orders.
  • Optics class toughened ultra-clear white explosion-proof glass, flux rate higher than 96%, eliminate infrared light halo completely.
  • Invisible nano wiper,non-stick water, non-stick oil, dust-proof.
  • Semiconductor thyristor temperature control module is selectable, it can achieve automatic heating and cooling function.
  • Adopt SONY-CV7520A zoom module,effective pixels: 2.13MP
  • 30X zoom,12X electronic zoom,focal length 4.3MM~129MM,aperture from F1.6 toF4.7, FOV : up to 63.7°。
  • Super WDR function,up to 120DB,own anti shake DSP ,defog and starlight level night vision function,color state minimum illumination can up to 0.01LX, black state minimum illumination can up to 0.0008LX
  • 24 hour time show;
  • RS485 two levels lightning protection, surge;
  • Support H.264 & H.265 video coding, support dual stream, support stream : 0.1M~8Mpbs adjustable,frame rate:25 FPS, support 1~25 FPS/Seconds adjustable;
  • RS485 interface
  • Network transparent transmission channel,can use Sony VISAC protocol to control camera
  • Free PC client software and windows Linux android iso platform SDK for second development
  • Optics class toughened ultra-clear white explosion-proof glass, flux rate higher than 96%, eliminate infrared light halo completely.
  • Invisible nano wiper,non-stick water, non-stick oil, dust-proof.
  • Semiconductor thyristor temperature control module is selectable, it can achieve automatic heating and cooling function.

Download Specifications

Category:

Description

Application Environments

Applicable for the factories having the explosive mixtures formed from class IIA,IIB and IIC T1-T6 group flammable gas, steam with air in area No.1 , No.2, and appearing the explosive hazardous area due to the mixture of flammable dust and air in area No.20,No.21 and No.22,such as oil field, chemical plant, port, oil storage, steamship, oil drilling platform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage and so on.

TECHNICAL SPECIFICATIONS

1. Made by corrosion-proof 304 stainless steel
2. H.264/H.265 video code, support dual stream, AVI format
3. Adopt original SONY-CV7520A zoom module, 4.3MM~129MM, 30x Optical Zoom
4. Horizontal 0°~360°, Vertical-90°~+90°
5. PTZ IPC explosionproof level : IP 68
6. With IR function

Model TPT-Ex-S2DB02
Material  304 Stainless Steel
Surface Treatment Original Stainless Steel Color, Electropolishing Optional
Ingress Protection IP68
Rotation Angle Horizontal 0°~360°,Vertical-90°~+90°
Rotation Speed Horizontal 0.1°/s~30°/s, Vertical 0.1°/s~30°/s
Communication Method 485
RS-485 Protocols Pelco-P, Pelco-D, self-adaptive
Communication Baud Rate 2,400/4,800/9,600/19,200 bps
Interface Spec G-1/2″
Weight ≤28kg
Automatic Scanning 1 (Menu control can set 5)
Automatic Cruise 1 (Menu control can set 8)
Max Carrying Capacity 10kg
Camera Type Sony Original Camera, 1/2.8-type Exmor R CMOS
Image resolution 1080p/59.94,1080p/50, 1080p/60, 1080p/30, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 1080i/60, 1080i/30, 720p/59.94,

720p/50, 720p/60, 720p/30, 720p/29.97, 720p/25, NTSC*1, PAL*1

Minimum Illumination Color: 0.01 Lux (F1.6,AGC on, 1/30s)

B/W: 0.01Lux @ (F1.6,AGC ON)
