Description
Product Size
Dimensions: 97mm x 99mm x 200mm
Key Features
- Incorporates an uncooled focal plane detector with sensitivity surpassing 50mK.
- Utilizes HyPix super-resolution display technology, delivering thermal image quality comparable to 640×480 resolution.
- Employs neural net and front-end intelligent algorithms to alleviate backend server load.
- Supports fusion of visual and thermal images, enhancing clarity and intuitiveness of target temperature display.
- Offers multiple temperature measurement methods including point, line, area, and full screen, with support for regional temperature measurement shielding.
- Provides intelligent warnings for abnormal temperatures and fire alarms.
- Enables intelligent analysis and alarms for tripwire, cross-border, and intrusion detection in low-light conditions.
- Offers a selection of 18 palettes such as black heat, white heat, iron red, and rainbow.
- Features a clear 4MP visual camera for high-quality imagery.
- Supports H264 and H265 video compression algorithms for efficient data handling.
- Compatible with protocols including RTSP, ONVIF, GB/T 28181, MODBUS, and others.
- Includes SDK support for secondary development and customization.
- Achieves an IP67 rating with lightning and surge protection, ensuring reliability in outdoor environments.

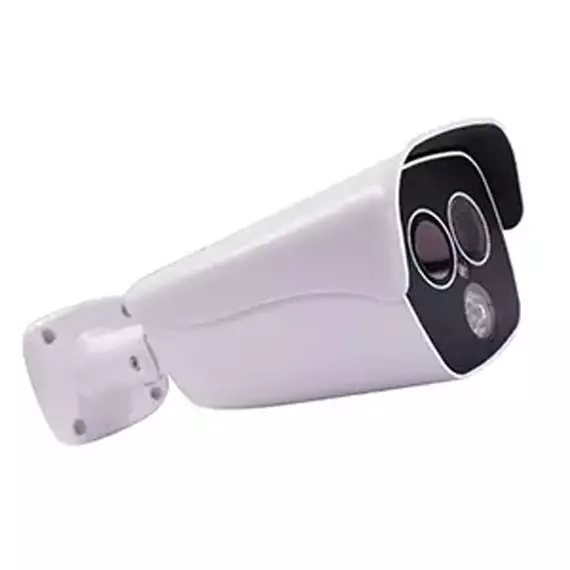

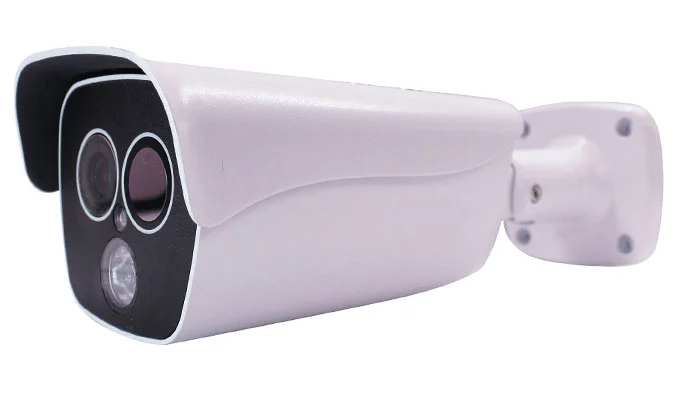

LY-TD120 Dual Vision Thermal Camera
Product Interface
- AV analog video output
- RS485 serial port
- Alarm input channel
- Alarm output channel
- DC12V power interface
- Audio input
- Audio Output
- RJ45 network interface
- IR illumination
- Visual camera lens
- Thermal camera lens
Applications
- Remote Surveillance
- Hazardous Environments Monitoring
- Critical Infrastructure Protection
- High-Security Zones
- Industrial Process Monitoring
Application Environments
- Suitable for indoor and outdoor environments
- Ideal for areas prone to security and fire hazards
- Used in perimeters, warehouses, charging carports, indoor parking lots, cultural relics, museums, etc.
Markets
- Electric Power
- Metallurgy
- Chemical Industry
- Petroleum
- Perimeter Security
- Warehouse Management
- Night Vision Monitoring
- Critical Infrastructure Protection
| Category | Specification |
| Thermal Camera | |
| Sensor | Uncooled Focal Plane Detector |
| Resolution/Pixel Size | 256 * 192/12µm |
| Response Waveband | 8~14µm |
| NETD | $50 mk (@25°C, F#1.0) |
| FOV | 55.642.0 |
| Palette | 18 types and fusion with visual |
| Visual Camera | |
| Sensor | 1/2.7 inches CMOS |
| Resolution | 2592*1536 |
| Lens Focal Length | 3.5mm |
| Low Light | Color: 0.01 Lux @(F1.5), Black and White: 0.001Lux @(F1.5, 0 Lux with IR) |
| Image | |
| Maximum Resolution | 2592*1536 pixels |
| Main Stream Resolution/Frame Rate | 640*480@25fps (Thermal)
2592*1536@25fps (Visual) |
| Sub Stream
Resolution/Frame Rate |
640*480/320*240 (Thermal)
D1/CIF (Visual) |
| Temperature Range | |
| Thermal Range | -20°C to 550°C
High gain: -20°C to -150°C Low Gain: )°C to 550°C |
| Temperature Alerts | 4 temperature rules (above high, below low, between, beyond), and support area temperature comparison. |
| Accuracy | ±5°C or ±5% of the reading (whichever is greater) |
| Functions | |
| Measurement Modes | Support point, line, area, full screen, and shielded modes, above modes can be set independently. |
| Image Fusion | Support visual, thermal image fusion mode, support visual image overlay temperature value mode |
| Image Flip | Support horizontal and vertical flip |
| Smart Functions | Fire point & intensity, intrusion alarm, tripwire |
| System Integration and General Specifications | |
| Audio Interface | 1 in/1 out |
| Communication Interface | RJ45 10M/100M self-adaptive; RS485 |
| Storage Interface | 1 TF card interface supports up to 128G memory |
| Alarm Interface | 1 in/1 out |
| Working Ambient | Working temperature -20°C~+70°C;
Working humidity ≤95% non-condensation |
| Power Supply/Consumption | DC12V; ≤5W |
| Dimension/Weight (LxWxHmm) | 200×97×99 (mm), ≤1kg |
Installation Instructions
- Before installation, ensure all equipment and accessories are intact against the packing list.
- The installation wall should be thick enough to support at least three times the weight of the bracket and the camera.
- Avoid installing the device in strong-facing light and backlight scenes.
- Disconnect the power of the thermal imager before installation.
- Use the provided installation accessories, and prepare additional accessories and tools if needed.
